Brass Camlocks

Type A



Product Code    Size         Size
AB0501/2"12mm
AB0753/4"20mm
AB1001"25mm
AB1251 1/4"32mm
AB1501 1/2"40mm
AB2002"50mm
AB2502 1/2"65mm
AB3003"80mm
AB4004"100mm
AB5005"125mm
AB6006"150mm















__________________________________________________________________________________________________________________

Type B



Product Code    Size          Size
 BB0501/2" 12mm
 BB075 3/4" 20mm
 BB100 1" 25mm
 BB125 1 1/4" 32mm
 BB150 1 1/2" 40mm
 BB200 2' 50mm
 BB250 2 1/2" 65mm
 BB300 3" 80mm
 BB400 4" 100mm
 BB500 5' 125mm
 BB600 6" 150mm













__________________________________________________________________________________________________________________

Type C



Product Code     Size          Size
 CB050 1/2"12mm
 CB075 3/4" 20mm
 CB100 1" 25mm
 CB125 1 1/4" 32mm
 CB150 1 1/2" 40mm
 CB200 2" 50mm
 CB250 2 1/2" 65mm
 CB300 3' 80mm
 CB400 4" 100mm
 CB500 5" 125mm
CB600 6" 150mm

















__________________________________________________________________________________________________________________

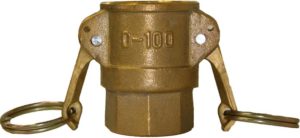

Type D

 Product Code     Size         Size
 DB0501/2"12mm
 DB075 3/4" 20mm
 DB100 1" 25mm
 DB125 1 1/4" 32mm
 DB150 1 1/2" 40mm
 DB200 2" 50mm
 DB250 2 1/2" 65mm
 DB300 3" 80mm
 DB400 4" 100mm
 DB500 5" 125mm
 DB600 6" 150mm

















__________________________________________________________________________________________________________________

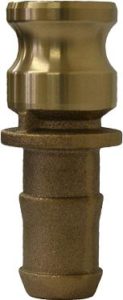

Type E

Product Code     Size          Size
EB0501/2"12mm
EB0753/4"20mm
EB1001"25mm
EB1251 1/4"32mm
EB1501 1/2"40mm
EB2002"50mm
EB2502 1/2"65mm
EB3003"80mm
EB4004"100mm
EB5005"125mm
EB6006"150mm



















__________________________________________________________________________________________________________________

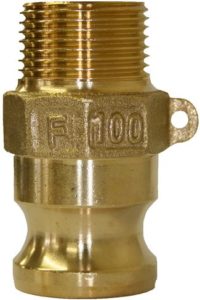

Type F

Product Code      Size              Size
FB0501/2"12mm
FB0753/4"20mm
FB1001"25mm
FB1251 1/2"32mm
FB1501 1/4"40mm
FB2002"50mm
FB2502 1/2"65mm
FB3003"80mm
FB4004"100mm
FB5005"125mm
FB6006"150mm

















_________________________________________________________________________________________________________________

Type DC

Product Code      Size           Size
 DCB0501/2' 12mm
 DCB0753/4" 20mm
 DCB1001"  25mm
 DCB125 1 1/4" 32mm
 DCB150 1 1/2" 40mm
 DCB200 2" 50mm
 DCB250 2 1/2" 65mm
 DCB300 3" 80mm
 DCB400 4" 100mm
 DCB500 5" 125mm
 DCB600 6"150mm















______________________________________________________________

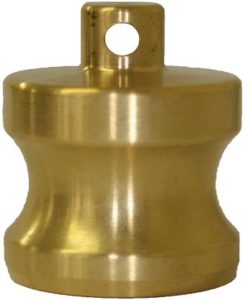

Type DP

Product Code       Size             Size
DPB0501/2"12mm
DPB0753/4"20mm
DPB1001"25mm
DPB1251 1/2"32mm
DPB1501 1/4"40mm
DPB2002'50mm
DPB2502 1/2"65mm
DPB3003"80mm
DPB4004"100mm
DPB5005"125mm
DPB6006"150mm



__________________________________________________________________________________________________________________
